2/3 Axle Heavy Duty Side wall/side board/drop side/fence/stake utility cargo Truck Semi Trailer 1.Product picture 2.Prod
Basic Info.
Model NO. LHY9400L
Independent Suspension Type Mechanical
Shape Van-type
Axle Number 3 Axle
Tire Number 12 PCS
Self-dumping Not Self-dumping
ABS Anti-lock Braking System ABS Anti-lock Braking System
Material Steel
Condition New
Landing Gear Jost C200 Two Speed
Kingpin 2"/3.5"
Size 12500X2500X4000mm
Spare Tire Carrier 2 PCS
Side Board Height 600/800/1000/1200mm
Tire 12r22.5
Wheel Rim 9.0-22.5
Suspension Mechanical Suspension
Axle 3X13tons
Transport Package Nude Wax Spray
Specification 12*2.5*2.1m
Trademark CHYG
Origin China
HS Code 87164000
Production Capacity 9000/Year
Product Description
2/3 Axle Heavy Duty Side wall/side board/drop side/fence/stake utility cargo Truck Semi Trailer

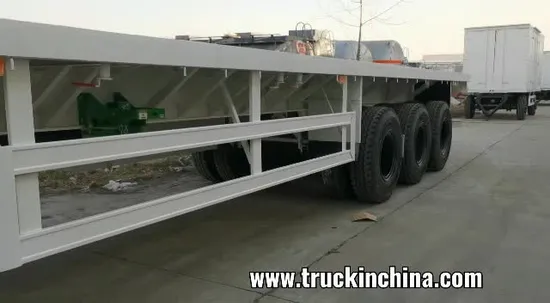

1.Product picture

2/3 Axle Heavy Duty Side Wall/Side Board/Drop Side/Fence/Stake Utility Cargo Truck Semi Trailer with Container Lock



2.Product parameter
size13000x2500x3500mm
payload60ton
tare weight 10000kg
axle3x13ton/14ton/16ton/20ton brand can be opentional
suspension mechanical suspension/air suspension/american type/germany type can be opentional
tire11R22.5/12R22.5/11.00R20/12.00R20 brand can be opentional
wheel rim8.25/9.0/8.0/8.5
kingpin 2"/3.5"
I beam up:14mm;bottom:16mm;middle:8mm;height:500mm;width:140mm:material:Q345B
landing gear jost c200 /fuwa two speed 28ton
floor/side boardfloor:4mm/board:3mm
twist lock (opentional)
spare tire carrier 2 pcs
tool box1 or more can be opentional
air wiring doule air line ;
electricity wiring 6 core wiring;24v or 12v ;LED lamp;
brake system wabco relay valve;drum brake;t30/30 brake chamber
paiting complete chassis sand blasting;electrophoresis coating;1 coat of anticorrosive prime;2 coats of final paiting
cylinder130#/140# 5pcs/6pcs opentional
accessories brake shoe;spare tire cranking;shaft head wrench;jack 50ton;tire bolt;lamp

3.NORMAL PROCEDURE

1)cutting use the plasma cutting machine cut the steel to little parts use for suitable welding and splicing 2)welding after steel cutting process the next step is welding .this process the main work is beam welding .the top plate-bottom plate and themiddle plate will be welding together . this process will be use submerged arc welding process.this type of welding is veryspecial .its exclusively used in I beam welding .after this welding process other parts of the trailer will be use different welding wayfor different steel-argon arc welding-electric arc welding-manual welding-gas welding and so on 3)blastingthis process is use for the first step of surface cleanness-stress relief-derusting before paiting . 4)electrophoresis coating this process use for more detail surface cleanness 5)epoxy zinc primer spray coatingthis process is the lasting one before paiting .after this process the trailer an be paiting 6)assemblyafter all the process we have mationed .the last procedure of the trailer is assembly.this process all the parts will be assemly .it including tire-wheel rim-king pin-landing gear-suspension-spring leaf -brake chamber-air wiring-electricity wiring-brake system and so on 7)packing The last process is packing .all the trailer use different packing way as customer requirment.after packing the trailer can be on the way to the customer

2/3 Axle Heavy Duty Side Wall/Side Board/Drop Side/Fence/Stake Utility Cargo Truck Semi Trailer with Container Lock


1)if welding line should be beautiful and strong.this process will be checking by the quality inspector of factory 2)surface should be clean and looks beautiful. 3)brake system should be adjust before the product leave the factory 4)lamp should my checking before leave the factory 5)all the parts should be reinforce .especially the bolt shoule be more reinforce before the produce leave the factory

5.HISTORY OF MY GREAT WOMEN BOSS!
1)civil servant worker before the year of 1990.2.laid-off workers after the year of 19903)steel business after the year of 19904)build semi trailer factory after the year of 2000 5)peoples congress (NPC member) in the year of 2005

6.INTERNATIONAL MARKET
1)china market before the year of 2005.we can produce about 12000 pcs one year 2)in the year of 2008 we do the national business .untill now we can export 2000pcs semi trailer one year 3)south africa exhibation in the year 2010 4)russia truck and trailer parts exhibation in the year 2012 5.germany auto trailer parts exhibation in the year of 2015 6)america trailer parts exhibation in the year 2014

2/3 Axle Heavy Duty Side Wall/Side Board/Drop Side/Fence/Stake Utility Cargo Truck Semi Trailer with Container Lock


FAQ
1)why you will select huayu trailer ?because we pay more attention to our customer requirment.we produce as the customer requirment completely 2)what superiority huayu trailer have ?good quality-good after-sales service-good cost performance.we are not the best but we will do our best to service for you 3)what product huayu can supply?big trailer company not only have superiority product .our product is diversity
