Garbage Recycling, Road Cleaning, High
- Overview
- Product Description
- Installation Instructions
Basic Info.
| Model NO. | WHX5120TXSBEV |
| Certification | ISO9001:2008 |
| Emission Standard | Euro 4 |
| Transmission Type | Automatic |
| Payload | 20T |
| Fuel | Diesel |
| Drive Wheel | 4×2 |
| Models | Micro |
| Condition | New |
| Production Company | Anhui Huaxin Electric Technology Co., Ltd. |
| Vehicle Model | Whx5120txsbev |
| Chassis Manufacturer/Brand | Saic Maxus Automotive Co., Ltd./Yuejin |
| Chassis Model | Sh1127zkevwz1 |
| Overall Dimensions (Length X Width X Hei | 7450×2420×2700 |
| Maximum Total Mass (Kg) | 11995 |
| Curb Mass (Kg) Load Mass (Kg) | 8980 2820 |
| Battery Capacity (Kwh) | 162.28 |
| Cruising Range (Km) | 300 (Constant Speed Method |
| Climbing Grade (%) | 20% |
| Front Overhang/Rear Overhang(mm) | 1195/2085 |
| Maximum Speed (Full Load) Km/H | 90 |
| Wheelbase(mm) | 4170 |
| Charge | Fast Charging |
| Transport Package | Nude or According to Customer Special Request. |
| Trademark | Huaxin |
| Origin | Anhui, China |
| Production Capacity | 200 Piece/Pieces Per Month |
Product Description
Product Description
WHX5120TXSBEV pure electric washing and sweeping vehicle is a pure electric multi-functional washing and sweeping vehicle produced by Anhui Huaxin Electric Technology Co., Ltd
This product is a high-efficiency sanitation vehicle that integrates a road sweeper and a high-pressure cleaning vehicle. It can complete sweeping and high-pressure cleaning in one operation. (3) The sweeping brush mechanism is controlled by a hydraulic cylinder, the swing arm disc brush has an adjustable inclination angle, the sweeping disc ground pressure is adaptively adjusted, and it has an obstacle avoidance and automatic reset function. A variety of safety protection alarm devices, as well as working cameras and rear-view monitoring systems, assist drivers in safe operation and monitor the operation status. able; It can wash and collect garbage and sewage. I
(1) Integrates three main functions: "sweeping", "washing and sweeping", and "rinsing"; can realize full washing and sweeping, left washing and sweeping, right washing and sweeping, full washing,
There are 9 operation modes in total, including left washing, right washing, full scanning, left scanning and right scanning, to meet the operation needs of customers.(2) Adopt the technical structure of "center-mounted two vertical sweepers + center-mounted wide suction nozzle with built-in high-pressure water spray rod + center-mounted high-pressure side spray rod", and connect the left and right spray rods It has multiple functions such as dust removal and is suitable for deep cleaning and general cleaning of urban main roads, curbs, elevated roads, etc. The rod and the nozzle are integrated together, with the characteristics of centralized operation device and constant distance between the nozzle and the ground, and the road sweeping operation and cleaning operation can be switched between each other.
It has multiple functions and can integrate road sweeper and cleaning vehicle into one.
| Sweeping width (mm) | 3200 |
| Sweeping speed (km/h) | 15 |
| Cleaning water pressure (MPa) | 5 |
| Cleaning rate (%) | 98 |
| Material | 304 Stainless Steel |
| Fresh water tank capacity (m³) | 5 |
| Trash bin capacity (m³) | 5 |
| Maximum inhalable particle size (mm) | 30 |
| Battery Type | Lithium iron phosphate battery (CATL) |
| Drive motor type | Permanent magnet synchronous motor |
| Lights and signals | Headlight + turn signal + brake light + fog light + reverse light + electric trumpet |
| tire | 8.25R20 16PR |
| Steering method | Electric Power Steering |
| Suspension | Leaf spring non-independent suspension |
| Parts warranty period | Parts Name |
Technical Parameter
Installation Instructions
Certificates
Related Products
Electric garbage tricycle Electric patrol vehicle
Electric garbage transport truck Electric garbage transport compactor
Packing & Delivery
Company Profile

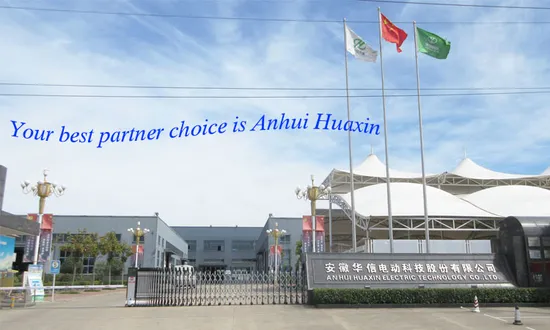

ANHUI HUAXIN ELECTRIC TECHNOLOGY CO., LTD
