China 2/3/4/6 Axle 50

Overview

Basic Info.

Model NO.	Lowbed Semi-trailer
Shape	Flatbed
Axle Number	3
Tire Number	12
Self-dumping	Not Self-dumping
ABS Anti-lock Braking System	ABS Anti-lock Braking System
Material	Steel
Condition	New
Max Torque	294kw
Total Weight	24980kg
Air Cylinder	6
Lifting Type	Front Lifting
Maximum Towing Weight	40000kg
Model	Lowbed Semitrailer
Segement	Heavy Truck
Color	Customize
Number of Wheels	12 Wheels
Manufactoring Year	2022
Transport Package	Nude
Specification	12 wheels
Trademark	CC
Origin	China
Production Capacity	500set/Year

Product Description

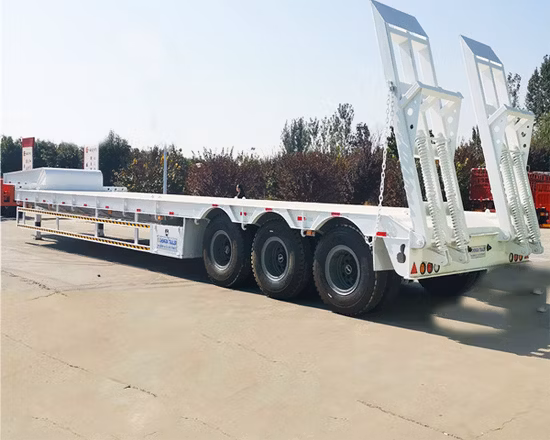

3 Axle New 80t Lowbed Semitrailer For Excavator Transport

Low flatbed semi-trailers have flatbed, concave beam and tire exposed structures, and the longitudinal beams are straight or gooseneck. The frame is stepped, and the cross section of the longitudinal beam is I-shaped, which has the characteristics of high rigidity and high strength.

Product Description

	Overall Dimension	13000mm*2500mm*2600mm or optional
	Curb Weight	6.5T
	Loading Capacity	40T, 50T, 60T, 70T, 80T, 90T, 100T
	Main Beam Spec.	T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm
	Side Frame	Channel Steel
	Cross Brace	Channel Steel/Bending Steel
	Suspension	Mechanical Suspension, Air Suspension or Optional
	Leaf Spring	10-layers leaf spring(90mm*13mm*10pcs)
	Axle Spec.	13T/16T/20T BPW or FUWA brand
	King Pin	2"(50mm)or3.5"(90mm) JOST Brand
	Tire	11.00R20/12.00R20/ 12R22.5
	Brake Chamber	6sets
	Landing Gear	28T*2, JOST brand
	Accessories	1 Standard Tool Box
	Electric System	24V, One Set 6-core Standard Cable
	Light	Tail lamp with turn signal,brake light & reflector,side lamp etc
	Painting	Sand balsting,prime coating, surface painting,color opitional, wax polishing
	Ladder	Spring or Hydraulic
	Packing	FCL Container, Buck Shippment, Ro-ro Shipment, Framework or Optional

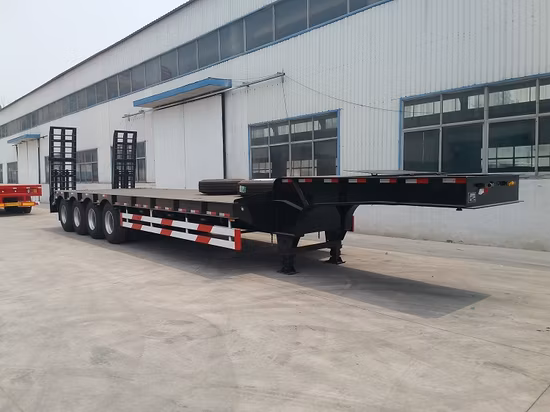

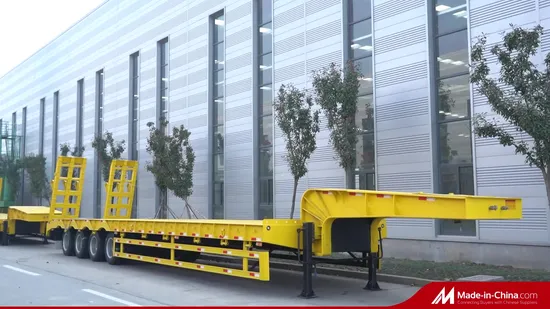

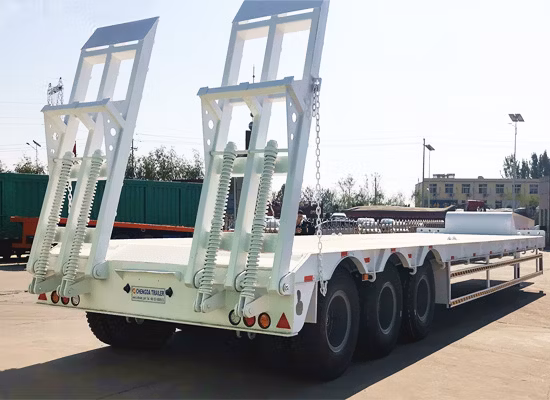

Detailed Photos

Customer Inspect Company

Packaging & Shipping

Factory Workshop

FAQ

1. Who are we?We are based in Shandong, China, start from 2019,sell to Africa(30.00%),South Asia(20.00%),Southeast Asia(20.00%),Mid East(20.00%),Domestic Market(10.00%). There are total about 11-50 people in our office.2. How can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.What can you buy from us?used dump truck,Tractor,howo Dump truck,Used Trailer,Trailer4. Why should you buy from us not from other suppliers?The company is an enterprise specializing in the export service of used commercial vehicles, providing one-stop services such as procurement, preparation, inspection, customs declaration, transportation and destination customs clearance for foreign custome5. What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
